Backscattering Case Study
This example demonstrates computing backscatter properties for ice crystals using GOAD, which is particularly relevant for lidar remote sensing applications.
Setup
Create a working directory and set up a Python 3.11 environment:
mkdir -p examples/backscattering
cd examples/backscattering
python3.11 -m venv .venv
source .venv/bin/activate
pip install bpy==4.5.3
pip install git+https://github.com/hballington12/bpy-geometries.git
pip install goad-py
conda create -n goad-backscatter python=3.11 -y
conda activate goad-backscatter
pip install bpy==4.5.3
pip install git+https://github.com/hballington12/bpy-geometries.git
pip install goad-py
uv venv --python 3.11
source .venv/bin/activate
uv pip install bpy==4.5.3
uv pip install git+https://github.com/hballington12/bpy-geometries.git
uv pip install goad-py
Geometry Generation
The bpy-geometries module can be used to create basic ice crystal shapes with modifiers. Available base shapes include HexagonalColumn, Bullet, Rosette, and Aggregate. Modifiers like Roughened can be applied to add surface roughness.
We'll create a roughened hexagonal plate - a 50 micron plate with aspect ratio 0.1:
- Radius: 25 microns
- Length: 5 microns (50 × 0.1)
- Max edge length: 15 microns (keep this large - at least 20% of particle size and several times the wavelength; too small means slower computation and less accurate results)
- Displacement sigma: 0.1 (subtle roughness)
Create generate_plate.py:
"""Generate a roughened hexagonal plate for backscattering simulation."""
import bpy # must import first to make bmesh available
from pathlib import Path
from bpy_geometries import HexagonalColumn, Roughened
output_dir = Path(__file__).parent
# 50 micron plate with aspect ratio 0.1
# radius = 25 microns, length = 5 microns
plate = Roughened(
HexagonalColumn(length=5.0, radius=25.0, output_dir=output_dir),
max_edge_length=15.0,
displacement_sigma=0.1,
merge_distance=1.0,
)
filepath = plate.generate()
print(f"Generated geometry: {filepath}")
Run it:
python generate_plate.py

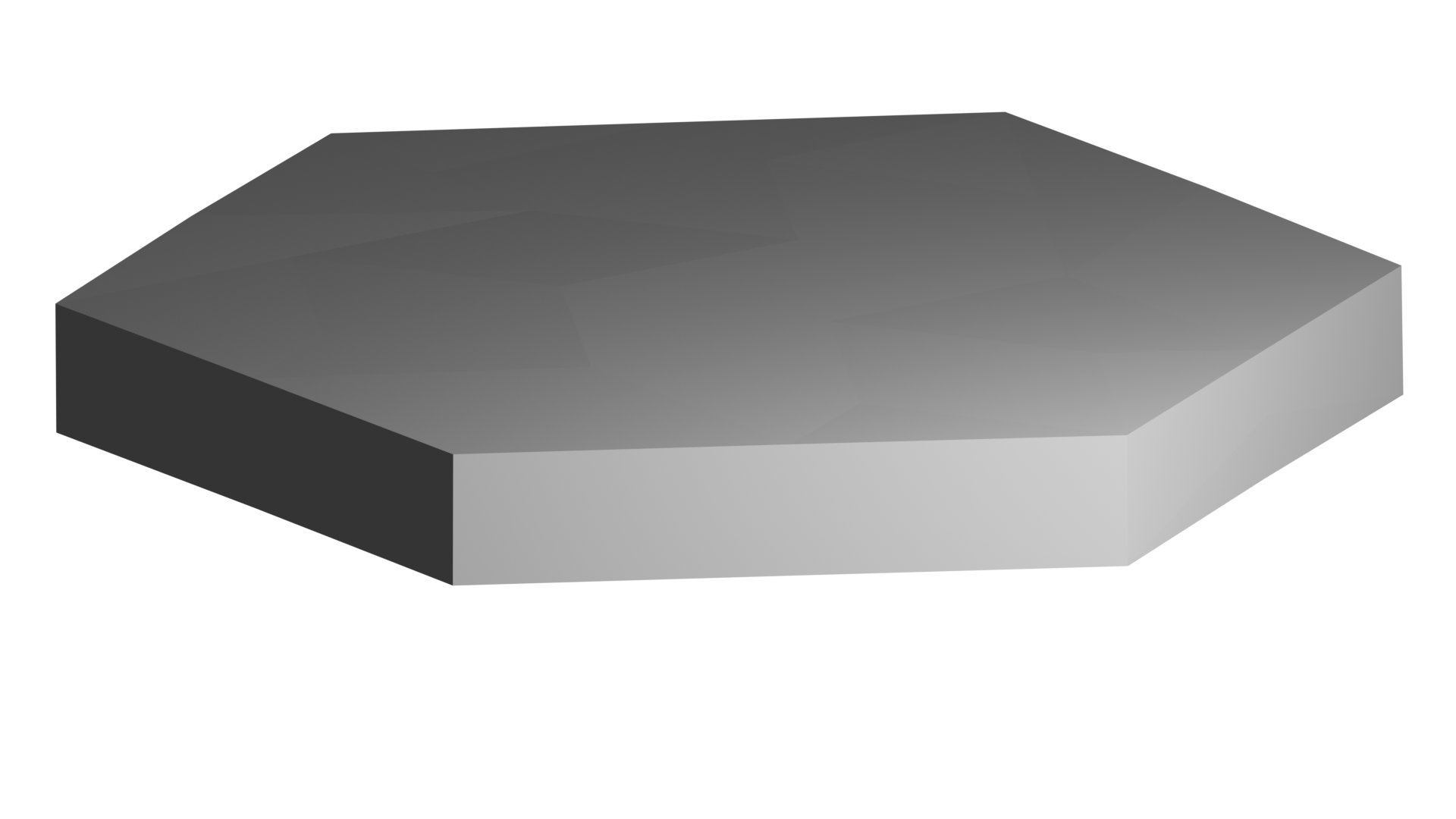

This produces an OBJ file with the roughened plate geometry.
roughened_edge15.0_sigma0p1_merge1p0_hexagonal_column_l5.0_r25.0_6904c8.obj
Running the Simulation
Create run_simulation.py:
"""Run GOAD backscattering simulation on the roughened hexagonal plate."""
from pathlib import Path
from goad import Convergence, Param, Settings
output_dir = Path(__file__).parent
geometry_file = (
output_dir
/ "roughened_edge15.0_sigma0p1_merge1p0_hexagonal_column_l5.0_r25.0_6904c8.obj"
)
settings = Settings(
geom_path=str(geometry_file),
wavelength=0.532,
particle_refr_index_re=1.31,
particle_refr_index_im=0.0,
zones=[],
max_tir=20,
directory=str(output_dir),
beam_area_threshold_fac=0.01,
beam_power_threshold=0.01,
cutoff=0.999,
)
convergence = Convergence(settings)
convergence.add_target(Param.LidarRatio, 0.1)
convergence.add_target(Param.DepolarizationRatio, 0.1)
convergence.solve()
convergence.save()
Key settings:
- wavelength: 0.532 µm (green lidar)
- particle_refr_index_re: 1.31 (ice at 532nm)
- zones: empty list disables the main scattering zone, leaving just forward and backward for greater speed
- max_tir: 20 (high value for backscattering accuracy)
- convergence targets: 10% error on lidar ratio and depolarization ratio
Run it:
python run_simulation.py
Output:
⠴ GOAD: [Convergence] [Elapsed: 42s] [Status: RUNNING] [2026-01-03 10:17:38]
[Orientations: 1731 (10|100000)] [0.025 sec/orientation]
LidarRatio 3.2150e2 ± 2.8452e1 [ 8.85% / 10.00%] [████████████████████] 100%
Simulation complete!
Results
The simulation saves results to results.json. Key backscattering parameters:
| Parameter | Value |
|---|---|
| Lidar Ratio | 18.0 sr |
| Depolarization Ratio | 20.3% |
| Backscatter Cross Section | 120.7 µm² |
| Extinction Cross Section | 2177.2 µm² |
Ensemble Averaging
Backscattering properties are sensitive to particle shape details. Different realizations of the same statistical roughness parameters can give different results. To get robust estimates, we ensemble average over multiple particle geometries.
Generate 5 particles with identical statistical parameters:
"""Generate 5 roughened hexagonal plates for ensemble averaging."""
from pathlib import Path
import bpy
from bpy_geometries import HexagonalColumn, Roughened
output_dir = Path(__file__).parent / "ensemble"
output_dir.mkdir(exist_ok=True)
for i in range(5):
plate = Roughened(
HexagonalColumn(length=5.0, radius=25.0, output_dir=output_dir),
max_edge_length=15.0,
displacement_sigma=0.1,
merge_distance=1.0,
)
filepath = plate.generate()
print(f"Generated particle {i+1}: {filepath}")
We can run the particles individually like before, or we can pass the directory and let GOAD run an average over the ensemble:
settings = Settings(
geom_path=str(ensemble_dir), # pass directory instead of single file
# ... other settings
)
Note: The ensemble average is not a multiple scattering simulation. GOAD selects a particle from the ensemble at random, then selects a random orientation, then runs the simulation. This repeats as the simulation converges. The result is an orientation-averaged, ensemble-averaged single scattering computation.
Individual particle results:
| Particle | Lidar Ratio (sr) | Depolarization (%) | Backscatter Cross (µm²) |
|---|---|---|---|
| 1 | 21.2 | 28.4 | 99.4 |
| 2 | 21.3 | 25.1 | 99.6 |
| 3 | 23.6 | 23.3 | 92.3 |
| 4 | 22.9 | 27.5 | 94.3 |
| 5 | 19.4 | 22.5 | 110.8 |
Ensemble results (3 runs):
| Run | Lidar Ratio (sr) | Depolarization (%) | Backscatter Cross (µm²) |
|---|---|---|---|
| 1 | 19.4 | 22.9 | 109.7 |
| 2 | 18.8 | 23.4 | 114.0 |
| 3 | 22.2 | 25.9 | 95.7 |
Roughness Sweep
To explore how surface roughness affects backscattering properties, we can run a parameter sweep over different roughness levels. Here we vary the displacement sigma from 0.25 to 5.0 in steps of 0.25, generating 5 particles for each level.
roughness_levels = [0.25 * i for i in range(1, 21)] # 0.25, 0.5, ..., 5.0
for sigma in roughness_levels:
output_dir = base_dir / f"roughness_{sigma}"
output_dir.mkdir(exist_ok=True)
for i in range(5):
plate = Roughened(
HexagonalColumn(length=5.0, radius=25.0, output_dir=output_dir),
max_edge_length=15.0,
displacement_sigma=sigma,
merge_distance=1.0,
)
plate.generate()
Running ensemble simulations for each roughness level (with 2.5% convergence tolerance):
