Fixed-Orientation Scattering Patterns

With a little work, it's possible to generate 2D fixed-orientation scattering patterns. This example shows one possible way of doing this. Intensity is the usual quantity of interest but, since GOAD computes the full Mueller matrix, polarimetric quantities are also possible.

Setup

The usual stuff... Create a directory to work in, install the GOAD package from the Python distribution however you like.

mkdir -p examples/fixed-orientation-patterns
cd examples/fixed-orientation-patterns

venvcondauv

python3.11 -m venv .venv
source .venv/bin/activate
pip install goad-py

conda create -n goad-fixed-orient python=3.11 -y
conda activate goad-fixed-orient
pip install goad-py

uv venv --python 3.11
source .venv/bin/activate
uv pip install goad-py

Geometry

Here, the smooth hexagonal column is used as a simple example geometry.

Imports

Some imports for the actual code.

Python

from pathlib import Path

from goad import (
    BinningScheme,
    Euler,
    EulerConvention,
    Geom,
    Mapping,
    MultiProblem,
    Orientation,
    Settings,
    ZoneConfig,
)

Orientations

Set up the orientations that should be looped over.

Python

EULER_CONVENTION = EulerConvention("ZYZ")

# Six orientations of a hexagonal column, sweeping the gamma rotation.
EULERS = [
    (0.0, 30.0, 0.0),
    (0.0, 30.0, 10.0),
    (0.0, 30.0, 20.0),
    (0.0, 30.0, 30.0),
    (0.0, 30.0, 40.0),
    (0.0, 30.0, 50.0),
]

Config

Define the job config. Edit as needed.

One or more zones can be configured to control where the far-field is computed and at what angular resolution.

Python

# A 2D zone over the full sphere, fine enough to render as an image.
zones = [
    ZoneConfig(
        BinningScheme.interval(
            thetas=[0, 90, 180],
            theta_spacings=[0.5, 1],
            phis=[0, 360],
            phi_spacings=[2],
        )
    )
]

The full job settings:

Python

GEOM_PATH = "hex.obj"
OUTPUT_ROOT = Path("runs")

# Load the particle geometry once with its refractive index.
geoms = Geom.from_file(GEOM_PATH, [1.31 + 0j])

settings = Settings(
    wavelength=0.532,
    medium_refr_index=1.0 + 0j,
    zones=zones,
    mapping=Mapping("ad"),
    beam_power_threshold=0.001,
    beam_area_threshold_fac=0.001,
    cutoff=0.99999,
    max_rec=10,
    max_tir=20,
    seed=None,
    directory=str(OUTPUT_ROOT),
    coherence=True,
    quiet=False,
)

Looping over orientations

Loop over orientations, running a single-orientation GOAD computation for each. save() takes an optional argument where you can choose the name of the output directory.

Note: While MultiProblem is the naming convention, in general you can choose whether the solve is a single or an average over multiple orientations.

Python

OUTPUT_ROOT.mkdir(exist_ok=True)

for i, (alpha, beta, gamma) in enumerate(EULERS):
    settings.orientation = Orientation.discrete(
        eulers=[Euler(float(alpha), float(beta), float(gamma))],
        euler_convention=EULER_CONVENTION,
    )

    out_dir = OUTPUT_ROOT / f"orient_{i:04d}"
    out_dir.mkdir(exist_ok=True)

    mp = MultiProblem(settings, geoms)
    mp.solve()
    mp.save(str(out_dir))

Run it:

python fixed_orientation_patterns.py

Results

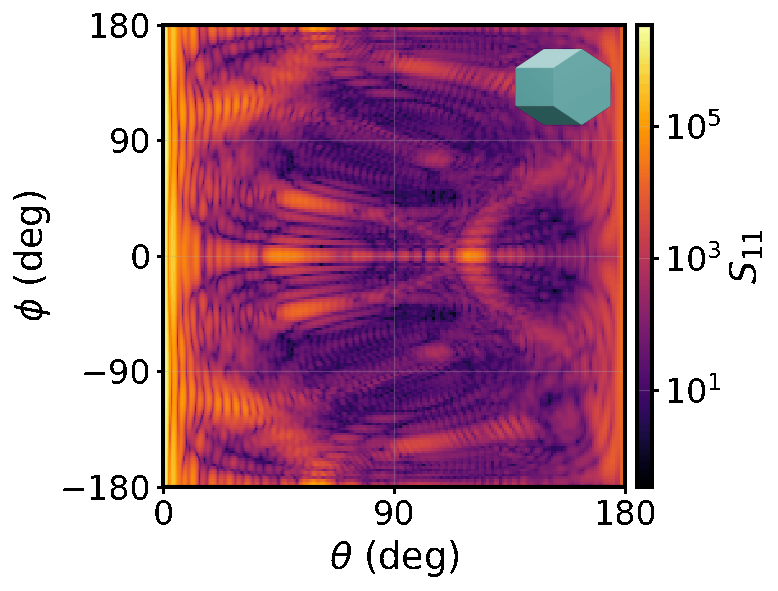

Each call to save() creates an output directory containing the scattering results for a particular orientation.
